Wide Base Stand for RLF750, RLF1500, RLF3000

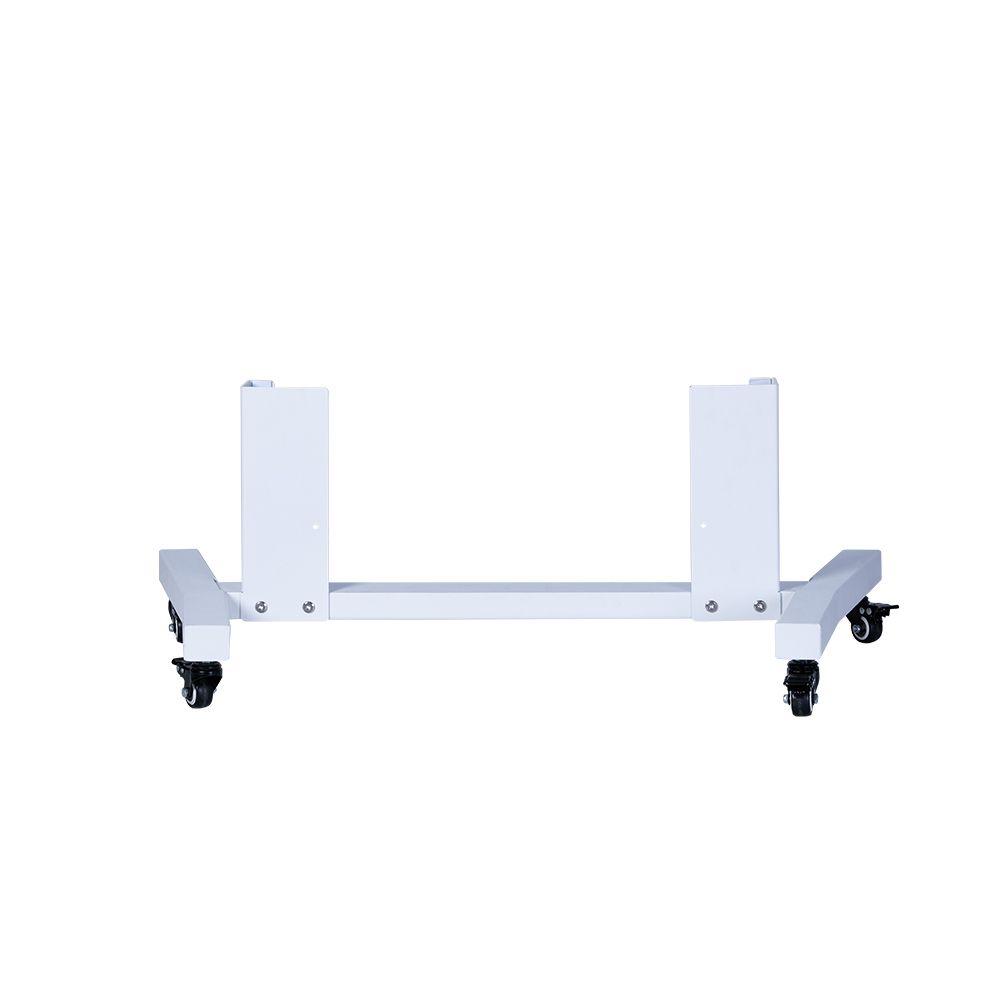

A wheeled floor base for the RLF750, RLF1500 and RLF3000. The frame is SPCC steel in a matte white finish, it measures 708 × 510 × 333mm, weighs 8.77kg and is rated to carry 50kg.

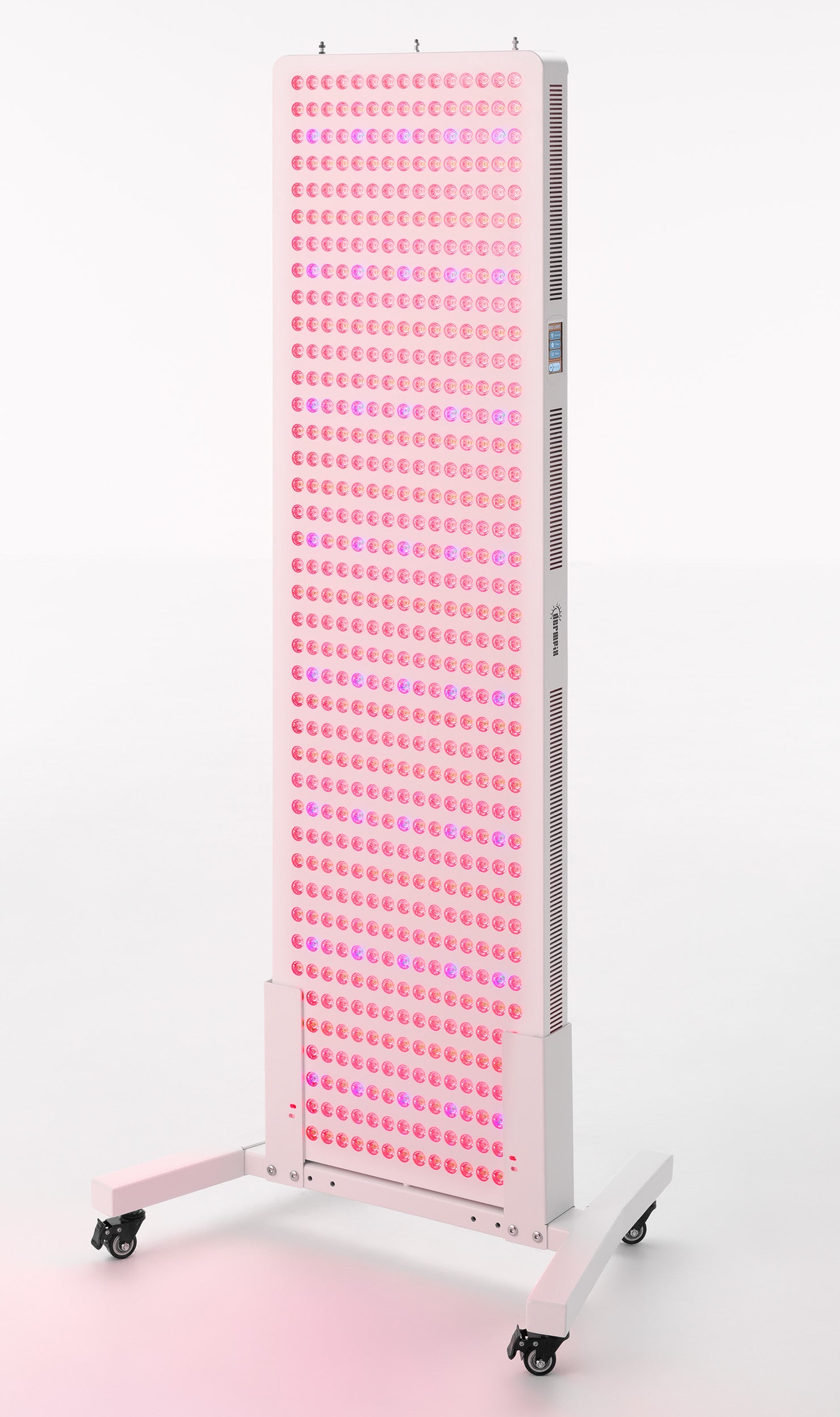

That 50kg rating leaves a wide margin over the panels it is listed for. The RLF3000 is the heaviest of the three at 21.5kg, so the stand is rated to roughly twice the load it is asked to hold. The margin matters on a mobile base, where the panel is being wheeled about rather than sitting still.

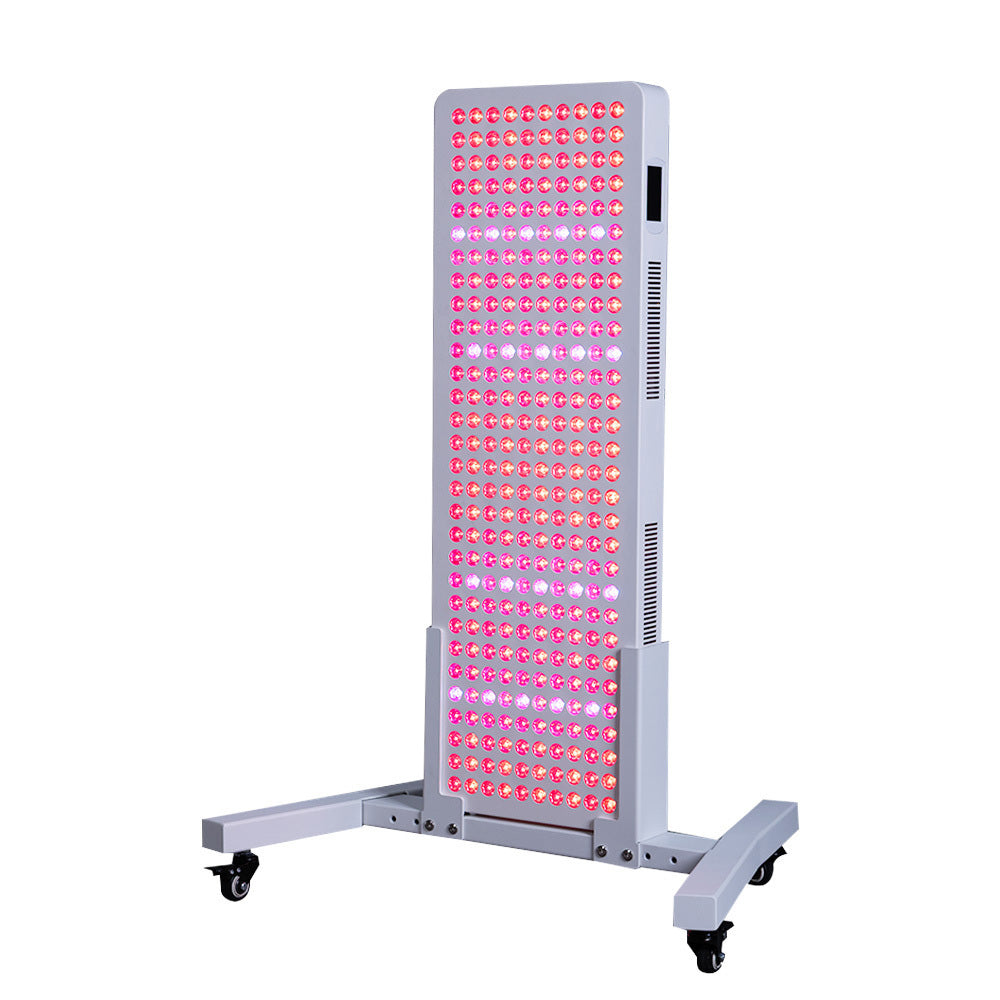

Four 360° castors sit under the base. The panel can be repositioned with the stand assembled and the panel mounted, so a treatment room can be reconfigured between sessions without anyone taking the weight of a panel by hand.

Compatibility

The RLF6000 is not among the panels listed for this base. At 180 × 60cm and 40.6kg it is carried on the vertical floor stand or the motorised floor stand.

Specification

Questions

Is it rated for the RLF3000?

Yes. The RLF3000 weighs 21.5kg against a 50kg capacity, so the panel uses well under half the rated load.

How much floor space does the base take up?

The footprint is 708 × 510mm, or roughly 71 × 51cm. Allow clearance around that for the castors to turn, plus standing room in front of the panel at a working distance of 15 to 30cm.

Can it be moved with the panel fitted?

Yes, that is the reason for the castors. All four swivel through 360°, so the assembly turns on the spot rather than needing to be reversed and lined up.

Will it hold an RLF6000?

The RLF6000 is not listed for this stand. Although its 40.6kg sits under the 50kg figure, the panel is 180cm tall and 60cm wide, and it is supported on the vertical or motorised floor stands instead.
